SKU: WKS.3X3.7X10MM

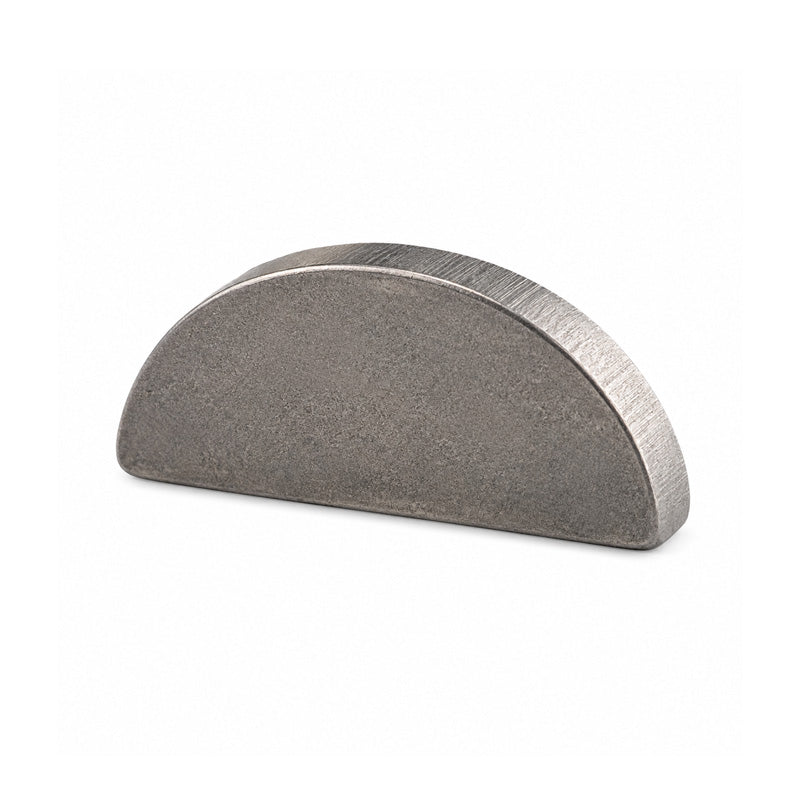

Metric Carbon Steel DIN6888 Woodruff Key 3x3.7x10mm
Metric Carbon Steel DIN6888 Woodruff Key 3x3.7x10mm
Regular price
$1.14
ex VAT
Regular price
Sale price
$1.14
ex VAT
In stock
Price Break
10+
$0.63
20+
$0.48
50+
$0.34
100+
$0.29
500+
$0.23
1000+
$0.17
Description
Description
Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation
- Brand / Quality:
- Simply Key Steel - High Quality
- Outside Diameter:
- 10mm
- Width:
- 3mm
- Height:
- 3.7mm
- Length:
- 9.66mm
- Material:
- Carbon Steel
Technical
Technical
| Width C | 3mm (Tol -0.025mm) |
|---|---|
| Height B | 3.7mm (Tol -0.12mm) |
| Nominal Diameter A | 10mm (Tol -0.1mm) |
| Actual Length L | 9.66mm |
| Material | Carbon Steel C45+C / DIN6888 |
| Weight per key (Approx) | 0.0008658 kg |
