SKU: WMG35-MB

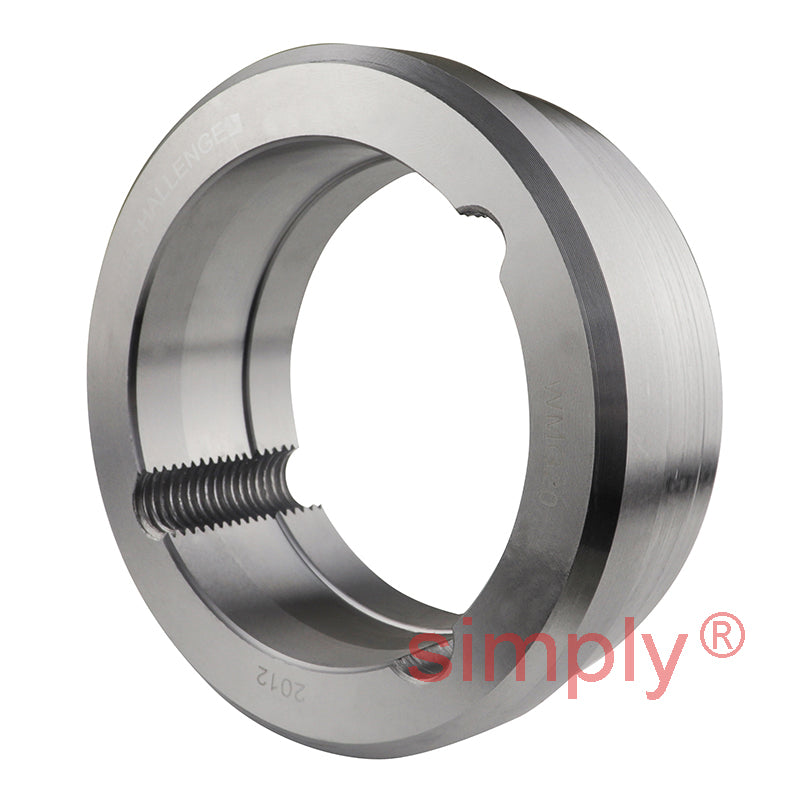

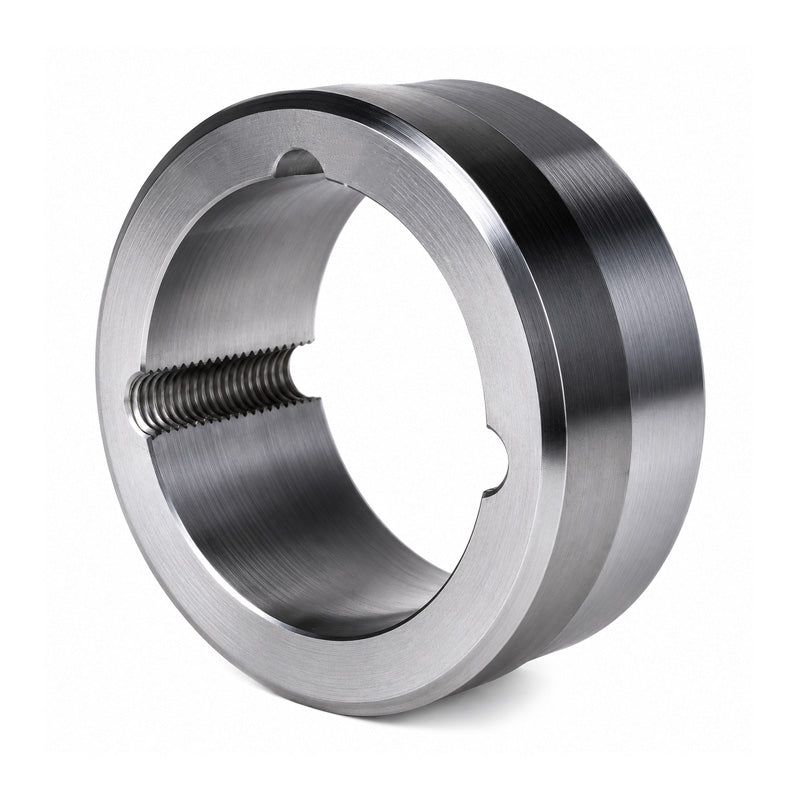

Major Brand WMG35 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WMG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$118.19
ex VAT
Regular price
Sale price
$118.19
ex VAT
In stock
Price Break
10+
$105.19
19+
$99.28
29+
$98.10
39+
$96.92
49+
$95.73
74+
$94.55
99+
$88.64
199+
$87.46
249+
$86.28
499+
$85.10
999+
$82.73
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 3535
- Outside Diameter:
- 184mm
- Width:
- 89mm
Technical
Technical
| Hub Reference | WMG35 |
|---|---|
| Bush Number | 3535 |
| A | 184mm |
| B | 155mm |
| C | 151mm |
| D | 89mm |
| E | 32mm |
| F | 25mm |
| F1 | 30mm |
| X | 30mm |
