SKU: WMO-2028-20

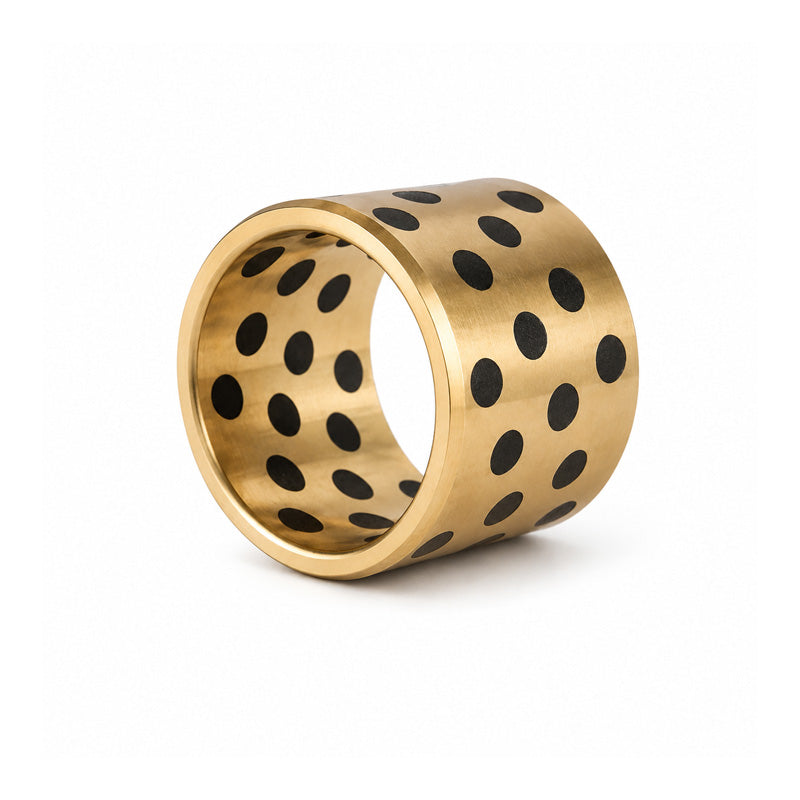

WMO202820 Plain Oilless Bronze Bush 20x28x20mm - Allow 2-3 Days
WMO202820 Plain Oilless Bronze Bush 20x28x20mm - Allow 2-3 Days
Regular price
$20.80
ex VAT
Regular price
Sale price
$20.80
ex VAT
Equivalent to: WMO202820
In stock
Price Break
5+
$20.59
10+
$19.76
20+
$19.34
50+
$18.72
100+
$18.30
500+
$17.26
1000+
$14.56
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO202820
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Length:
- 20mm
- Item Type:
- Plain
Technical
Technical
| d | 20mm |
|---|---|
| D | 28mm |
| L | 20mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 238.732 rpm |
| Max load | 4077.472 kg |
| Housing Tolerance | H7 |
