SKU: WRE68-EU
WRE68 Heavy Duty Shaft Snap Ring for 68 mm Diameter Shafts / 65.8 Groove Depth
WRE68 Heavy Duty Shaft Snap Ring for 68 mm Diameter Shafts / 65.8 Groove Depth
Regular price
$4.99
ex VAT
Regular price
Sale price
$4.99
ex VAT
In stock
Price Break
10+
$4.44
19+
$4.19
29+
$4.14
39+
$4.09
49+
$4.04
74+
$3.99
99+
$3.74
199+
$3.69
249+
$3.64
499+
$3.59
999+
$3.49
Description
Description
Heavy Duty Shaft Snap Rings: Designed to support heavy end loading these heavy-duty shaft snap rings can be fitted in the confidence that they will stay put under extreme loads. Ideal as backstops for bearings or just as backstops for sliding shaft elements. Typically found in, but not limited to heavy industrial and hydraulic applications.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52
Benefits: Strong, Heavy Duty, Reliable
- Brand / Quality:
- Simply Snap Rings - High Quality
- Shaft Size:
- 68mm
- Thickness:
- 2mm
Technical
Technical

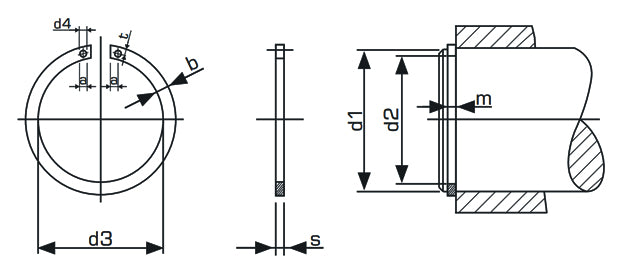

| Nominal Shaft Diameter d1 | 68mm |
|---|---|
| Inside Diameter d3 | 64.6mm |
| Approx Outside Dia | 74.2mm |
| Face width b | 4.8mm |
| Thickness s | 2mm |
| Groove Diameter d2 | 65.8mm |
| Max rpm | 4710 rpm<sup>1</sup> |
| Weight | 0.01625 kg |
