SKU: WSZC45-JCS

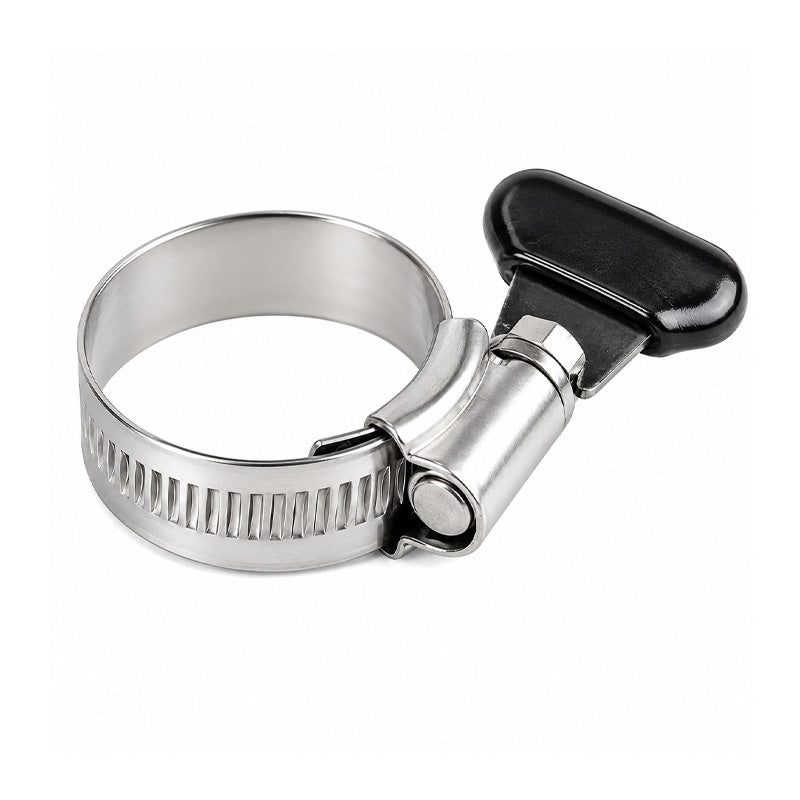

JCS WSZC45 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 35-45mm Band Width 13mm
JCS WSZC45 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 35-45mm Band Width 13mm
Regular price
$6.44
ex VAT
Regular price
Sale price
$6.44
ex VAT
In stock
Price Break
10+
$5.73
19+
$5.41
29+
$5.35
39+
$5.28
49+
$5.22
74+
$5.15
99+
$4.83
199+
$4.77
249+
$4.70
499+
$4.64
999+
$4.51
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 35mm
- Max Adjustment Range:
- 45mm
Technical
Technical
| BS No. | 45 |
|---|---|
| Adjustment Range (mm) | 35-45mm |
| Adjustment Range (inch) | 1-3/8 - 1-3/4 inch |
| A | 13mm |
| B | 32mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| G | 24mm |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
