SKU: YAT205-100-SKF

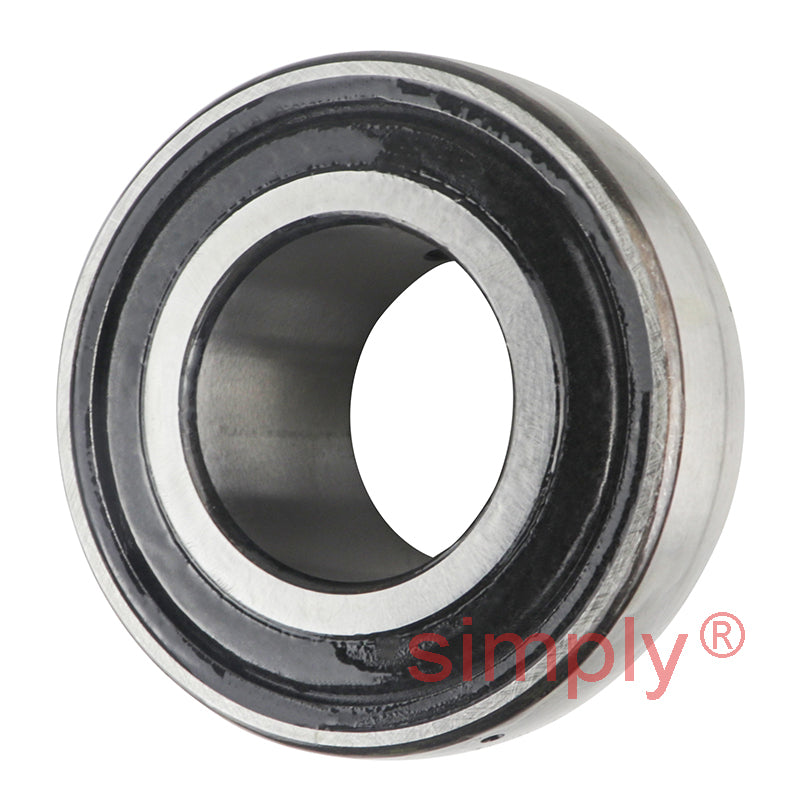

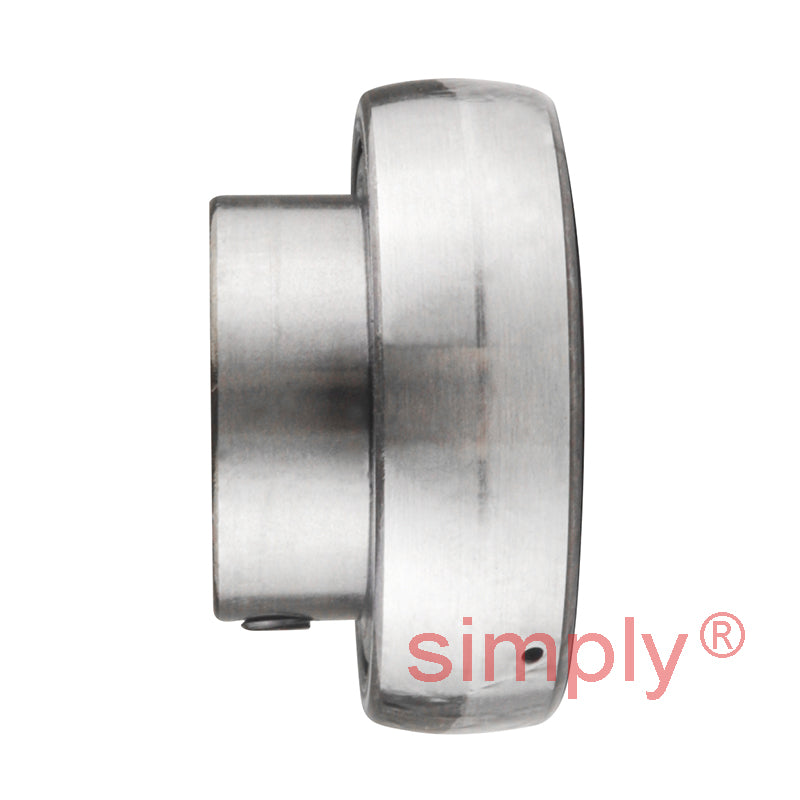

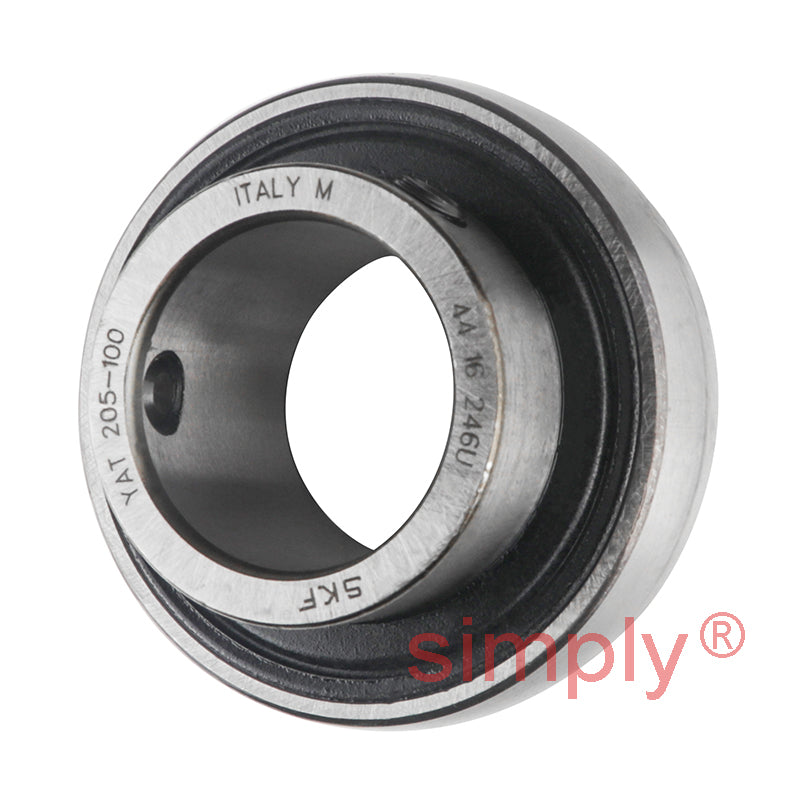

SKF YAT205-100 Grub Screw Type Bearing Insert 1 inch Bore 52mm Outside Diameter
SKF YAT205-100 Grub Screw Type Bearing Insert 1 inch Bore 52mm Outside Diameter
Regular price
$27.02
ex VAT
Regular price
Sale price
$27.02
ex VAT
In stock
Price Break
10+
$24.05
19+
$22.70
29+
$22.43
39+
$22.16
49+
$21.89
74+
$21.62
99+
$20.27
199+
$19.99
249+
$19.72
499+
$19.45
999+
$18.91
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.16 kg |
