SKU: YAT206-SKF

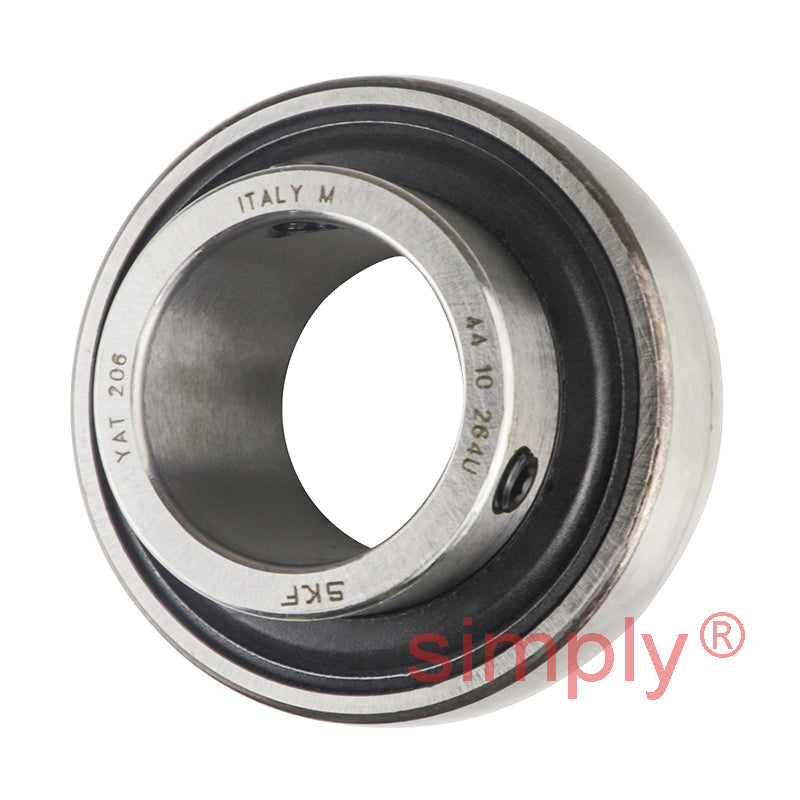

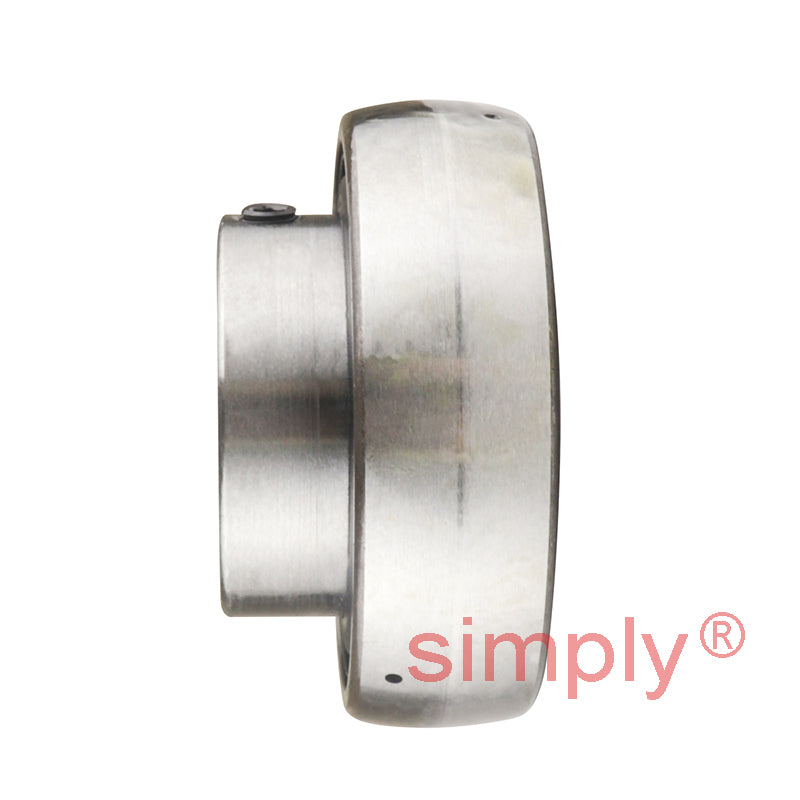

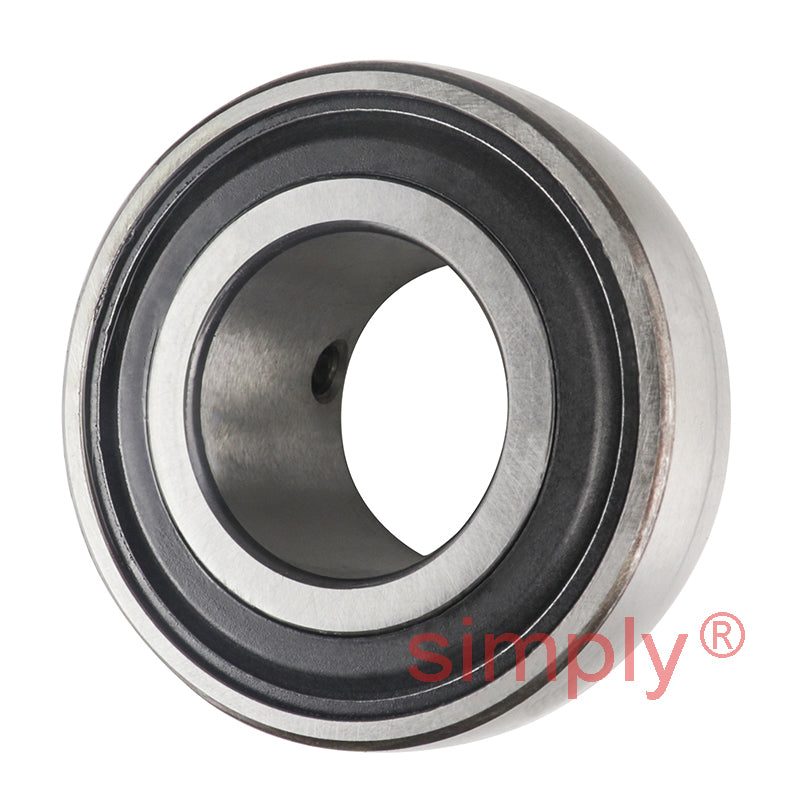

SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
Regular price
$27.43
ex VAT
Regular price
Sale price
$27.43
ex VAT
In stock
Price Break
10+
$24.41
19+
$23.04
29+
$22.77
39+
$22.49
49+
$22.22
74+
$21.94
99+
$20.57
199+
$20.30
249+
$20.02
499+
$19.75
999+
$19.20
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 30.2mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 21mm |
| r1r2 min | 0.6mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.23 kg |
