SKU: YAT210-115-SKF

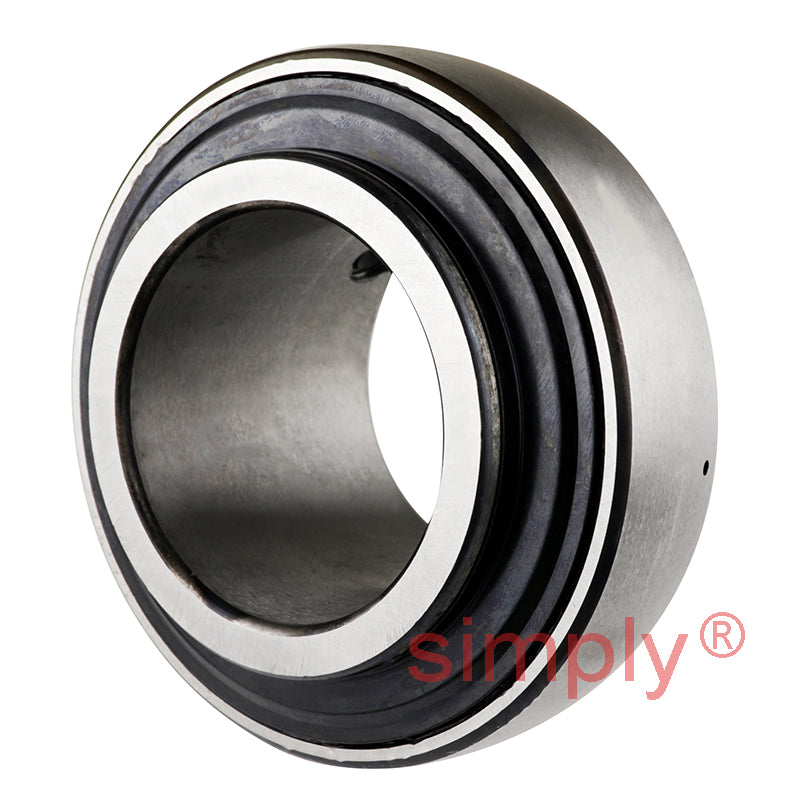

SKF YAT210-115 Grub Screw Type Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
SKF YAT210-115 Grub Screw Type Bearing Insert 1-15/16 inch Bore 90mm Outside Diameter
Regular price
$52.87
ex VAT
Regular price
Sale price
$52.87
ex VAT
In stock
Price Break
10+
$47.05
19+
$44.41
29+
$43.88
39+
$43.35
49+
$42.82
74+
$42.30
99+
$39.65
199+
$39.12
249+
$38.60
499+
$38.07
999+
$37.01
Description
Description
|

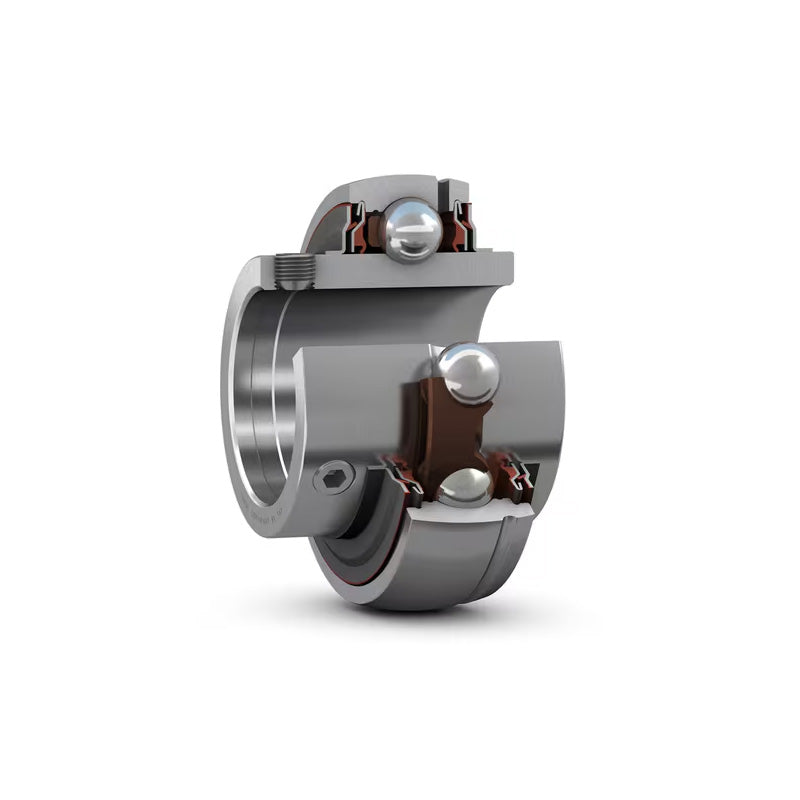

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 90mm
- Style:
- YAT
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| B | 43mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 32mm |
| r1r2 min | 1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 0.67 kg |
