SKU: YAT210-SKF

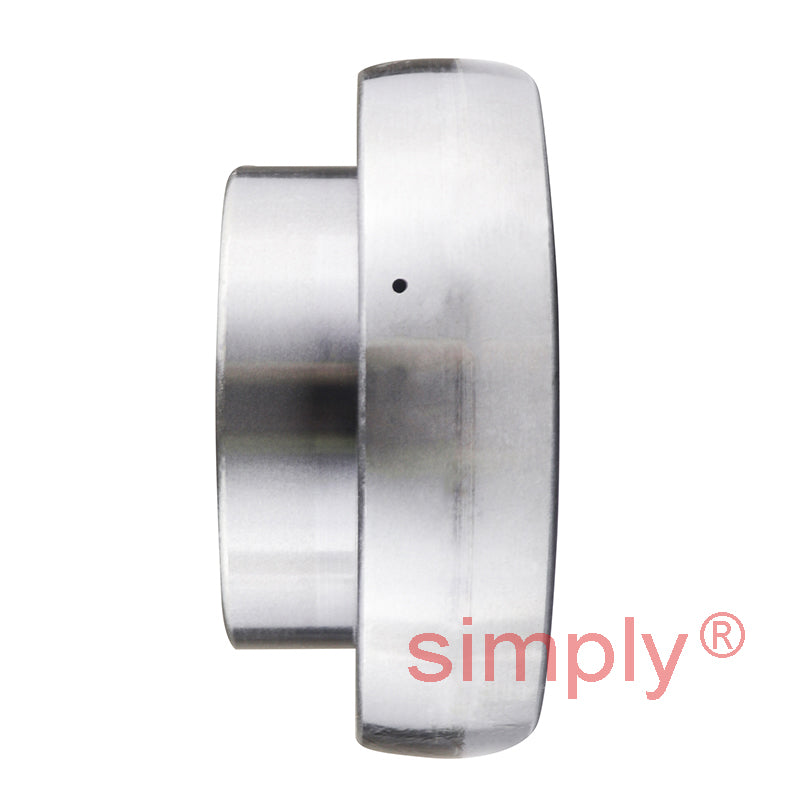

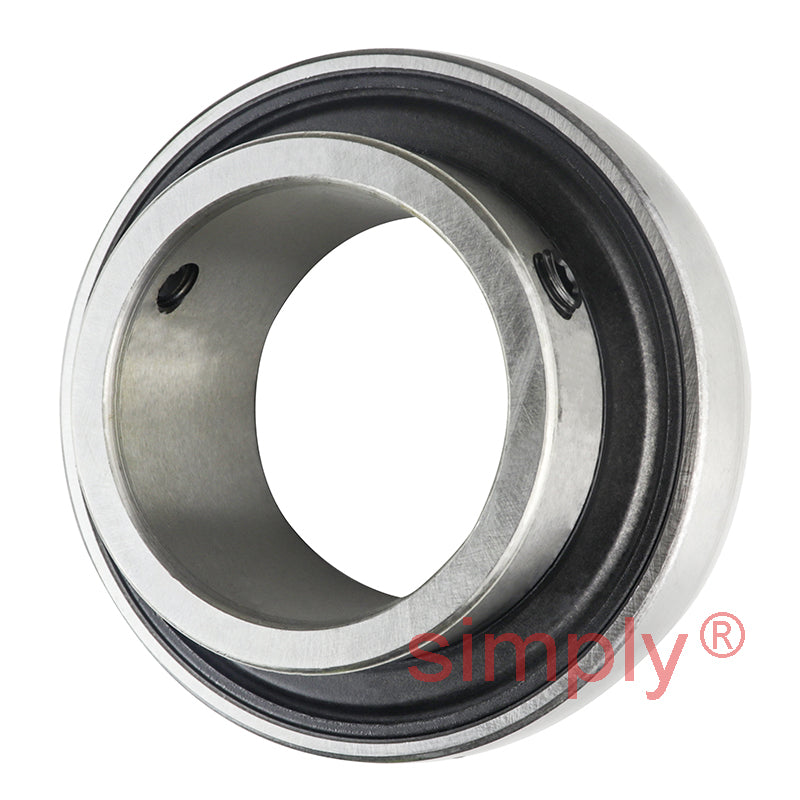

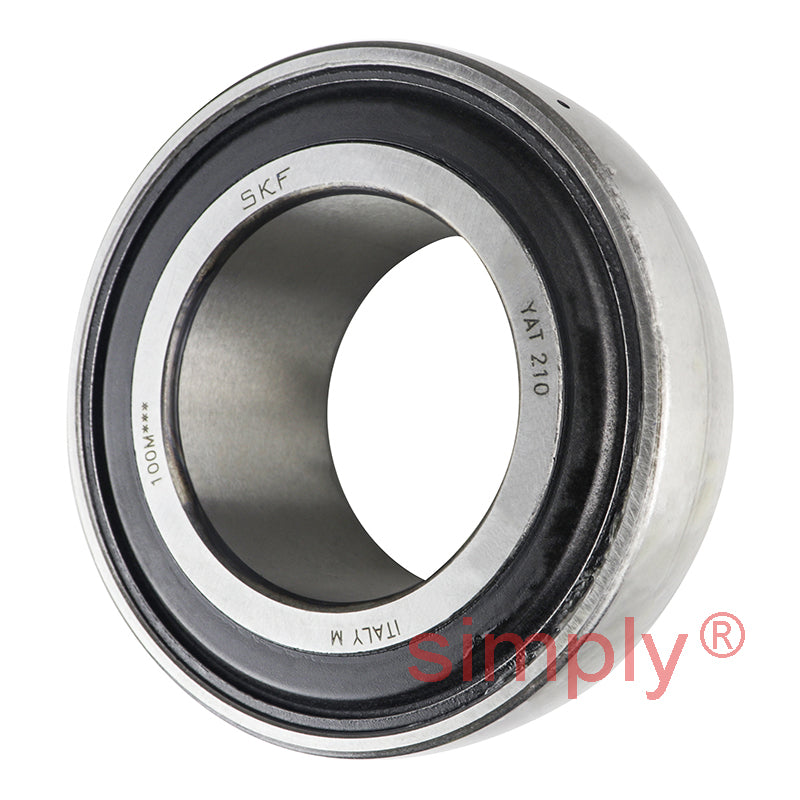

SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
Regular price
$59.74
ex VAT
Regular price
Sale price
$59.74
ex VAT
In stock
Price Break
10+
$53.17
19+
$50.18
29+
$49.58
39+
$48.99
49+
$48.39
74+
$47.79
99+
$44.81
199+
$44.21
249+
$43.61
499+
$43.01
999+
$41.82
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- YAT
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 38.8mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 27.6mm |
| r1r2 min | 1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 9.54 kg |
