SKU: YT.4025

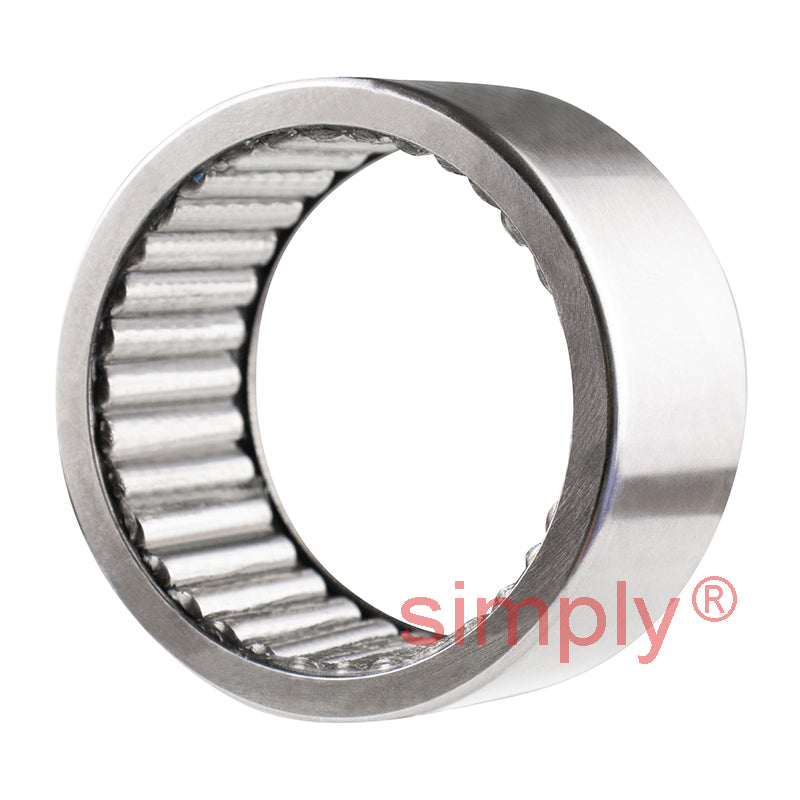

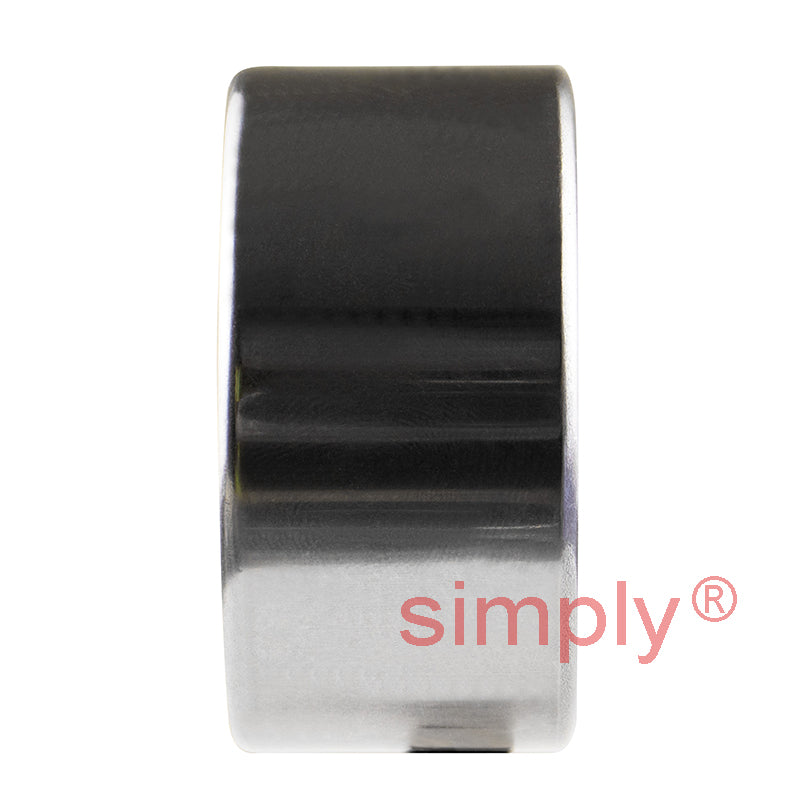

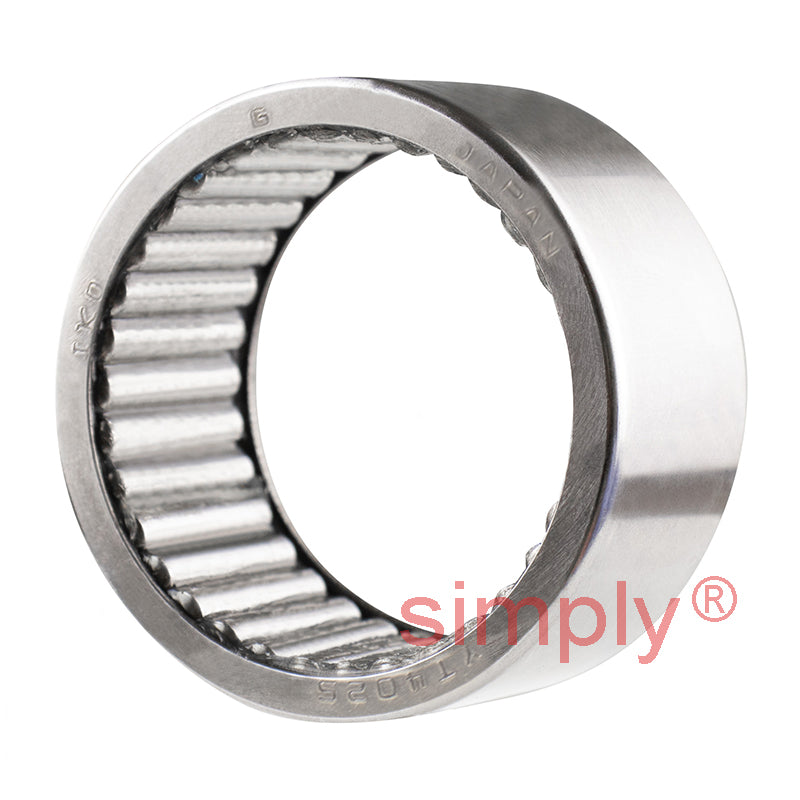

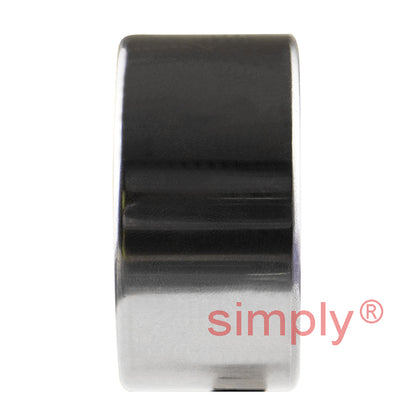

IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm

IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm
$26.20 ex VAT
$26.20 ex VAT
Sale Sold out

Low stock

Price Break
10+ $23.32
19+ $22.01
29+ $21.75
39+ $21.48
49+ $21.22
74+ $20.96
99+ $19.65
199+ $19.39
249+ $19.13
499+ $18.86
999+ $18.34
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
IKO - High Quality
Inside Diameter:
40mm
Outside Diameter:
50mm
Width:
25mm
Technical
Fw 40mm
D 50mm
C 25mm
Dynamic load 55300 N
Static load 114000 N
Inner ring IRT3525
Weight 109 g
